Explosion-Proof Dynamic Checkweigher for Hazardous Areas | SC-EP-3012L02
- Model
- SC-EP-3012L02
Item specifics
- Weighting range
- ≤200g
- Weighting section size
- L 300mm*W 120mm
- Weighting accuracy
- ±0.2g
- Belt speed
- 5-90m/min
- Weighting accuracy
- ±0.1-±0.3g
- Applicable product size
- L≤200mm; W≤110mm
Review
Description
Detail Information

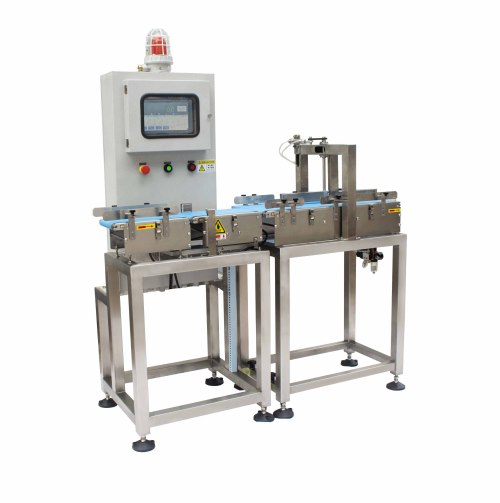

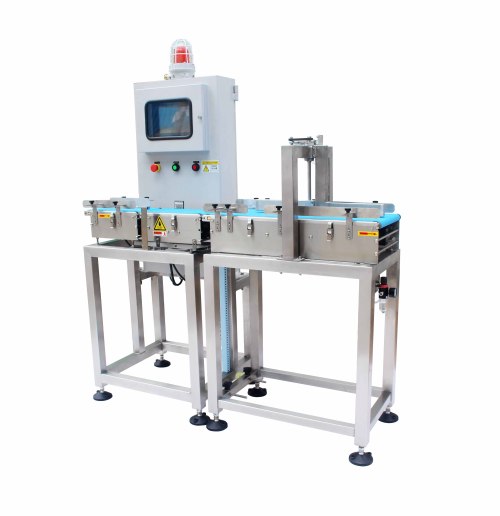

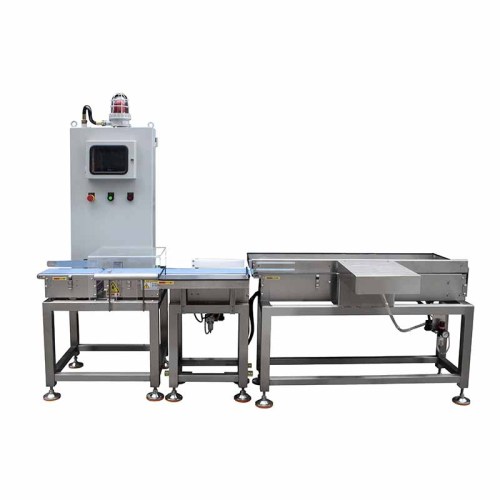

Explosion-Proof Dynamic Checkweigher for Hazardous Areas | SC-EP-3012L02
Introduction
The SC-EP is an explosion-proof dynamic checkweigher engineered for hazardous production zones where safety and accuracy are equally critical. Designed for environments with flammable gases, combustible dust, or corrosive materials, it supports precision checkweighing systems while minimizing manual contact—an essential requirement for chemical, food, gas, and oil facilities.
With a compact footprint and durable IP65 checkweigher construction, the SC-EP integrates directly into existing conveyor lines as a reliable belt checkweigher solution. Its high-speed dynamic checkweighing performance helps manufacturers maintain quality control without disrupting workflow.
Because every hazardous-area application is different, the SC-EP supports full customization: platform size, weighing capacity, and system configuration can all be tailored within safe and feasible ranges. This makes it a practical choice for facilities requiring a secure, adaptable, and compliant checkweighing system in explosive-risk environments.
Explosion-Proof Dynamic Checkweigher for Hazardous Areas | SC-EP-3012L02 Features
Explosion-Proof Dynamic Checkweigher for Hazardous Areas | SC-EP-3012L02
Technical Parameters
| Product model | SC-EP-3012L02 | |
| Weighting range | ≤200g | |
Weighting section size | L 300mm*W 120mm | |
Belt speed | 5-90m/min | |
Air pressure interface | Φ8mm | |
| Case material | 304 stainless steel | |
Conveying direction | Facing the machine, left in and right out | |
Display division | 0.02g | |
| Weighting accuracy | ±0.1-±0.3g | |
| Applicable product size | L≤200mm; W≤110mm | |
Storage formula | 100 types | |
| Power supply | AC220V±10% | |
| Air source | 0.5-0.8MPa | |
Data transmission | USB data export | |
Alarm mode | Sound and light alarm and automatic rejection；Explosion-proof photoelectric switch | |
Rejection mode | Air blowing, push rod, swing arm, drop, up and down flip, etc. (customizable) | |
| Optional function | Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling | |
Operation screen | 10-inch Weiluntong color touch screen | |
Control system | Sardory online weighing control system V1.0.5；Explosion-proof electrical box；Three-phase explosion-proof motor | |
| Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor | |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
Complete Safety-Focused Explosion-Proof Checkweigher Support— Certifications & Customization
Certifications & Compliance — Engineering Trust and Safety Assurance
These certifications and design controls significantly reinforce the machine’s credibility and suitability for industries such as chemicals, petrochemicals, food processing, and other sectors dealing with hazardous materials.
Customization & Support — Tailored Explosion-Proof Checkweigher Solutions
The conveyor and reject mechanism are customized to your line’s speed, load, and safety constraints.Integration with chemical or gas-filling equipment is available, along with traceable data formats for audits and compliance.
We provide clear professional installation guidance, reliable after-sales support, and complete technical documentation to ensure safe and correct operation in high-riskenvironments.
What the SC-EP Explosion-Proof Checkweigher Does— Functions
✔ Inline weight checking of hazardous materials
✔ Detects missing or incorrect product content
✔ Avoids human exposure to toxic/flammable substances
✔ Prevents under/overfilling during chemical dosing
✔ Ensures compliance with CE&ISO and safety regulations
✔ Enhances overall production safety and efficiency
✔ Reduces waste and material loss in high-cost materials
✔ Supports batch traceability and automated QA
Where Explosion-Proof Checkweighers Are Used— Industries & Applications
🧪⚗️🏭 Chemicals
Used for weighing chemical powders, explosive raw materials, corrosive liquids, small batch bags, drums, ensuring safe filling accuracy, preventing underfill/overfill, and reducing operator exposure.
For food factories handling flammable powders (starch, sugar dust, flour, seasoning powders) where combustible dust can create explosion risks. SC-EP ensures safe weighing while maintaining hygiene and production speed.
For manufacturing environments where fine metallic dust, plastic powder, or volatile processing chemicals may create ignition hazards. Ensures stable weight inspection while meeting safety compliance.
For storage areas of flammable goods, chemicals, powdered materials, gas cylinders, ensuring compliant weighing before packing or dispatch.
For factories producing powder medicines, solvent-based liquids, volatile actives, requiring explosion-proof equipment during filling and checkweighing.
Ideal for alcohol-based cosmetics, volatile fragrances, and powder cosmetics, providing inline filling verification and accurate weight control for lotions, toners, perfumes, and powdered makeup products.
Explosion-Proof Dynamic Checkweigher for Hazardous Areas Case Studies
Explosion-Proof Belt Checkweighers for Hazardous Areas Case Studies
Q1. What makes SC-EP explosion-proof?
Certified explosion-proof electrical components, Explosion-proof standards enclosure, sealed wiring, protected sensors, and non-sparking design.
Q2. Can SC-EP work with corrosive chemicals or liquids?
Yes — stainless-steel and corrosion-resistant materials allow use with acids, solvents, or volatile liquids.
Q3. What types of hazardous materials can be weighed?
Explosive powders, volatile chemicals, flammable liquids, gas containers, or combustible food powders.
Q4. Is SC-EP suitable for gas-explosion and dust-explosion zones?
Yes — supports both gas (Zone 1/2) and dust (Zone 21/22) environments.
Q5. What advantages does SC-EP have over normal checkweighers?
Explosion-proof safety, reduced manual exposure, compact footprint, multi-function design, and compliance documentation for regulated industries.
