X-ray Inspection Systems Fish Bone X-ray Inspection System XSS-F-4610
- Model
- XSS-F-4610
Item specifics
- Conveyor Belt Speed
- 10-25m/min
- Inspection Weight
- <10Kg
- Inspection Dimensions
- 450mm*100mm
- Equipment Materials
- 316L stainless steel, brushed finish
Review
Description
Detail Information
X-ray Inspection Systems Fish Bone X-ray Inspection System XSS-F-4610
Introduction

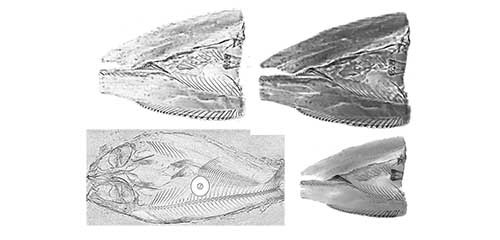

Ensure your seafood is safe, bone-free, and of the highest quality with our advanced fish X-ray inspection system. Powered by the specialized AI algorithm Diffusion-SvFisher, it detects tiny, non-calcified bones as small as 0.05mm, helping processors achieve zero-residue products. Featuring a 4K display, this X-ray inspection system for fish highlights bone locations for precise manual removal and seamless production line integration. Trusted by seafood manufacturers, this x ray inspection equipment protects your brand while delivering reliable, automated quality control.
X-ray Inspection Systems Fish Bone X-ray Inspection System XSS-F-4610 Features
Fish Bone X-ray Inspection System XSS-F-4610 Technical Parameters
| Model | XSS-F4610 | ||||
| X-ray Source (Unit: W) | 350W beryllium window | ||||
| Inspection Accuracy | Stainless steel wire 0.05*6mm (unloaded, subject to change depending on the sample, actual test results shall prevail) | ||||
Operating Software | Self-developed Sooview detection software | ||||
Human Machine lnterface | 21.5-inch/43-inch high-definition monitor | ||||
Conveyor Belt Speed | 10-25m/min | ||||
Inspection Weight | <10Kg | ||||
Inspection Dimensions | 450mm*100mm | ||||
Power Supply | AC220V、2.1kvA、50Hz | ||||
Temperature and Humidity | Ambient temperature -10~45'℃,relative humidity 30~85%(non-condensing) | ||||
Waterproof Rating | Conveyor is lP66, other parts are lP65 | ||||
Equipment Materials | 316Lstainless steel, brushed finish | ||||
File Downloads
For more product related parameter files, please contact us.
Fish Bone X-ray Inspection System Applications
Cod Bone-Free Inspection

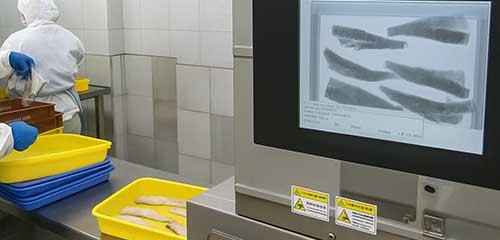

With the fish bone X-ray inspection system, tiny bones in cod fillets are precisely detected and highlighted for quick manual removal, ensuring zero-residue products while improving efficiency and safety.
The X-ray inspection system for fish accurately identifies small bones in sea fish, allowing fast removal for bone-free products while ensuring safety and production efficiency.
