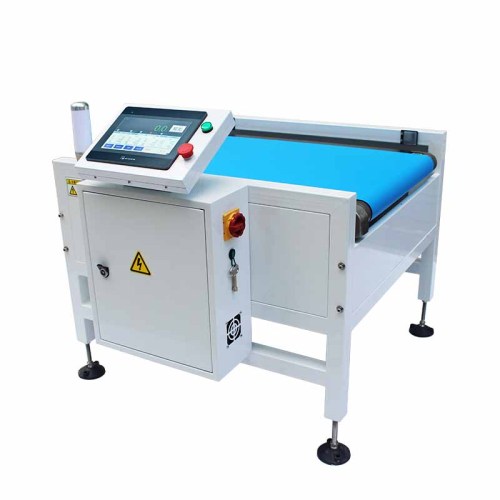

Dynamic Checkweigher End-of-Line for Heavy Outer Boxes SC3-10060L50
- Model
- SC3-10060L50
Item specifics
- Weighting range
- 0.05-50kg
- Belt speed
- 5-90m/min
- Weighting section size
- L 1000mm*W 600mm
- Weighting accuracy
- ±5-20g
- Rejection mode
- Customized
- Applicable product size
- L≤800mm; W≤600mm
Review
Description
Detail Information
Dynamic Checkweigher End-of-Line for Heavy Outer Boxes SC3-10060L50
Introduction
The SC3-10060L50 is engineered for large-volume packages and delivers stable performance in high-speed, heavy-load production environments. Its high-capacity conveyor and precise weighing sensors ensure accurate inline weight inspection at the final stage of the production line. The built-in rejector system automatically removes products that fall outside the set weight range, helping maintain consistent quality.
The conveyor is designed for easy disassembly, making installation, maintenance, and cleaning straightforward—an important advantage for facilities that handle bulk or dusty materials. With its durable structure and reliable inline operation, the SC3-10060L50 is well-suited for demanding industrial applications that require dependable weight control.
Dynamic Checkweigher End-of-Line for Heavy Outer Boxes SC3-10060L50 Features
Dynamic Checkweigher End-of-Line for Heavy Outer Boxes
Technical Parameters
| Product model | SC3-10060L50 | |
| Weighting range | 0.05-50kg | |
Weighting section size | L 1000mm*W 600mm | |
Belt speed | 5-90m/min | |
Air pressure interface | Φ8mm | |
| Case material | Carbon steel spary painting | |
Conveying direction | Facing the machine, left in and right out | |
Display division | 1g | |
| Weighting accuracy | ±5-20g | |
| Applicable product size | L≤800mm; W≤600mm | |
Storage formula | 100 types | |
| Power supply | AC220V±10% | |
| Air source | 0.5-0.8MPa | |
Data transmission | USB data export | |
Alarm mode | Sound and light alarm and automatic rejection | |
Rejection mode | Push rod type, swing wheel type, top lifting hanging type optional | |
| Optional function | Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling | |
Operation screen | 10-inch Weiluntong color touch screen | |
Control system | Samegram online weighing control system V1.0.5 | |
| Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor | |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* The SC3-10060L50 is optimized for high-capacity weighing. For products under 1kg requiring sub-gram accuracy, please refer to our high-precision checkweigher models.
File Downloads
For more product related parameter files, please contact us.
End-of-line Checkweigher Applications
Warehousing and Logistics: Ensures palletized goods and bulk boxes meet shipment weight requirements.
Other Food and Beverages: Validates the weight of packed juice cartons, sauce boxes, and beverage crates.
Dry Goods, Grains and Cereals: Checks sacks of rice, wheat, flour, and packaged grains for correct weight.
Consumer Electronics and Toys: Verifies boxed electronics, bundled toys, and accessory kits before shipment.
Fish, Seafood and Meat: Controls weight of frozen fish boxes, meat crates, and seafood packs
End-of-line Checkweigher Cases
End-of-line Checkweigher FAQS
Q1: What is the maximum capacity of the SC3-10060L50 Heavy Checkweigher, and what products is it designed for?
A: The SC3-10060L50 is a heavy-duty checkweigher built for end-of-line inspection of large items, supporting a weighing range from 0.05kg up to 50kg. It is specifically designed for high-volume, high-weight packages such as cartons, outer boxes, bulk goods, and large consumer electronics in logistics and warehousing environments.
Q2: How does an End-of-Line Checkweigher prevent costly shipping and logistics errors?
A: By performing a final, dynamic weight inspection before palletizing or shipping, the system ensures the carton weight is correct. This is critical for:
•Underweight Detection: Identifying missing components, manuals, or accessories inside the box.
•Overweight Detection: Preventing unexpected freight charges and ensuring compliance with carrier weight limits.
•Compliance: Providing verifiable data for logistics compliance and quality assurance.
Q3: What level of accuracy (precision) can I expect when weighing heavy boxes up to 50kg?
A: The SC3-10060L50 offers a high degree of accuracy for its heavy-load class, with a precision of ±5g to 20g across the 50kg weighing range. This precision is highly effective for end-of-line quality control and overweight/underweight detection of large packages, ensuring that the total weight is within the required tolerance.
Q4: What is the maximum size of a carton or box that the SC3-10060L50 can handle?
A: The machine features a large weighing section size (L 1000mm * W 600mm) to accommodate substantial packages. It can handle products up to 800mm in length and 600mm in width, making it suitable for most standard outer boxes and large-format packaging used in logistics.
Q5: What is the throughput (speed) of this heavy-duty checkweigher?
A: The SC3-10060L50 is a high-speed system with a conveyor belt speed adjustable from 5 to 90 meters/minute. The actual throughput (boxes per minute) will depend on the length of the box and the required accuracy, but it is engineered for stable performance in fast-paced, heavy-load production environments.
Q6: Can the SC3-10060L50 integrate with my existing ERP or MES system for data management?
A: Yes. The checkweigher is equipped with standard communication ports, including RS232/RS485 and Ethernet, allowing seamless integration with your existing ERP (Enterprise Resource Planning) or MES (Manufacturing Execution System). This enables real-time data exchange, remote monitoring, and centralized reporting.
Q7: Is the heavy-duty design difficult to clean and maintain?
A: Despite its robust construction, the SC3-10060L50 is designed for easy maintenance. It features a Quick-Release Conveyor design for tool-free belt removal, simplifying cleaning and part replacement. The open-frame construction and smooth surfaces minimize residue buildup, meeting industrial cleanliness standards.
